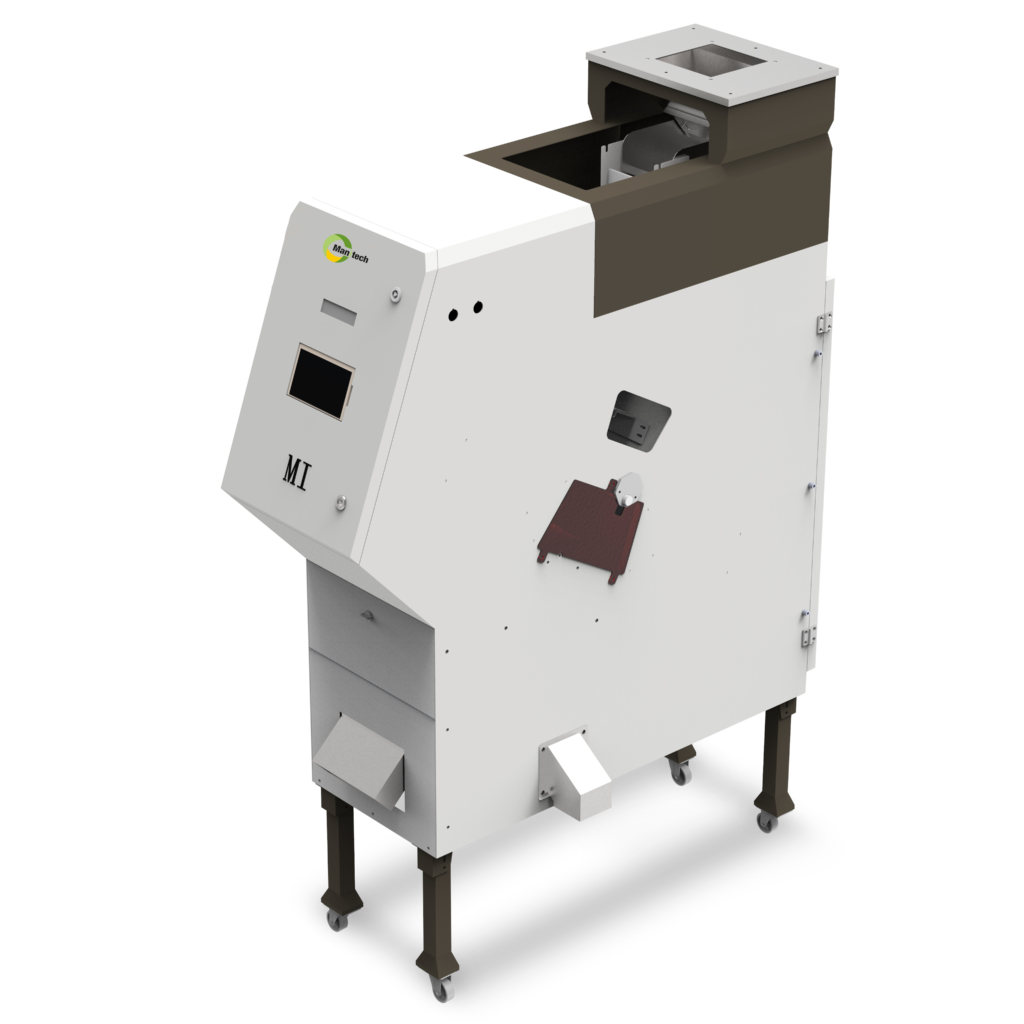

RGB Camera Technology: The RGB Colour Sorter Machine employs state-of-the-art cameras utilizing Red, Green, and Blue (RGB) spectrum to capture detailed images of each rice grain. This technology allows for precise color detection and sorting.
High-Speed Processing: Equipped with a powerful processing engine, the machine operates at high speeds, sorting large volumes of rice in real-time. This ensures a continuous and efficient workflow in rice processing plants.
Model | TCS 1T |
Main Power (kW) | 1 |
Air Consumption (m /min) | 0.6 |
Capacity (t/h) | 0.6-1 |
Net Weight (kg) | 400 |
Dimension (LxWxH) (mm) | 1030 x 1600 x 1950 |
Model | TCS 2T |
Main Power (kW) | 1.5 |
Air Consumption (m /min) | 1.2 |
Capacity (t/h) | 1.2 |
Net Weight (kg) | 615 |
Dimension (LxWxH) (mm) | 1330 x 1660 x 2185 |

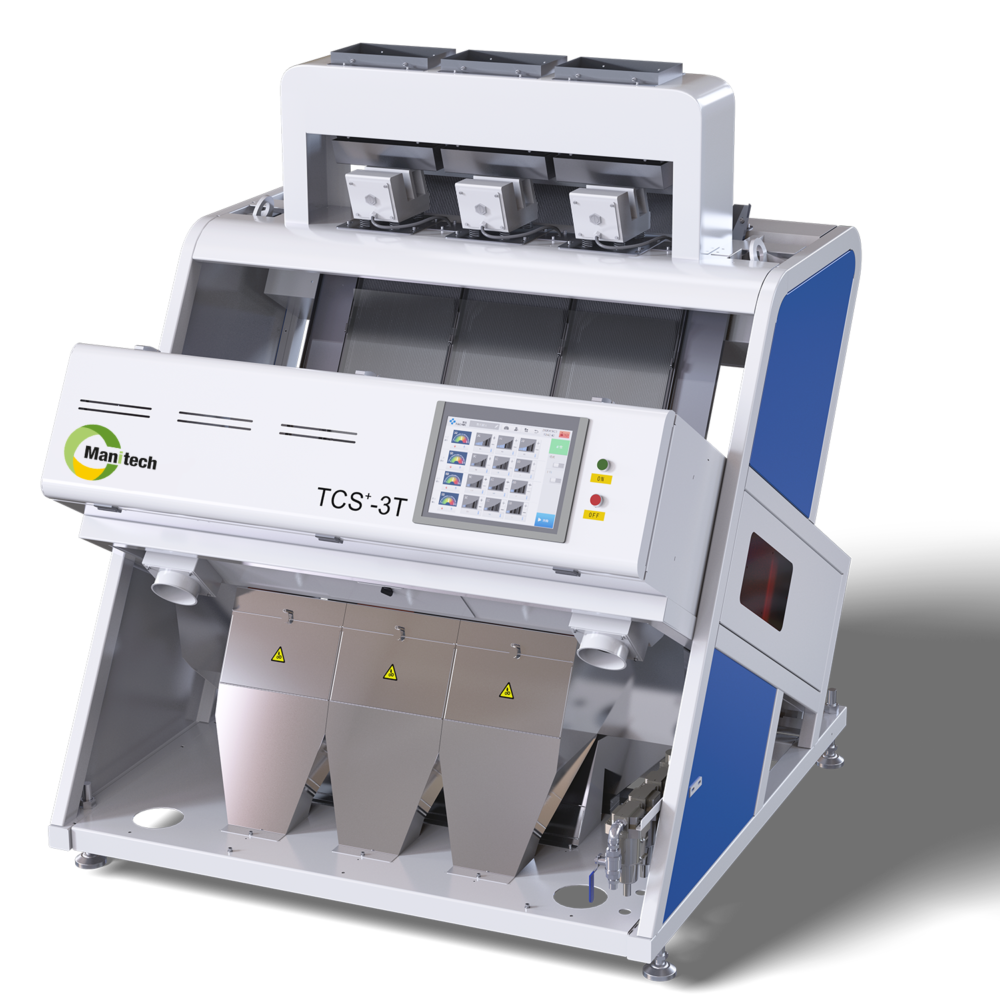

Model | TCS 3T |
Main Power (kW) | 3 |
Air Consumption (m /min) | 2 |
Capacity (t/h) | 2-2.5 |
Net Weight (kg) | 763 |
Dimension (LxWxH) (mm) | 1645 x 1660 x 2185 |
Model | TCS 4T |
Main Power (kW) | 5 |
Air Consumption (m /min) | 2.4 |
Capacity (t/h) | 3-6 |
Net Weight (kg) | 915 |
Dimension (LxWxH) (mm) | 2025 x 1660 x 2185 |
Model | TCS 5T |
Main Power (kW) | 5 |
Air Consumption (m /min) | 2.8 |
Capacity (t/h) | 3-8 |
Net Weight (kg) | 1250 |
Dimension (LxWxH) (mm) | 2355 x 1660 x 2185 |

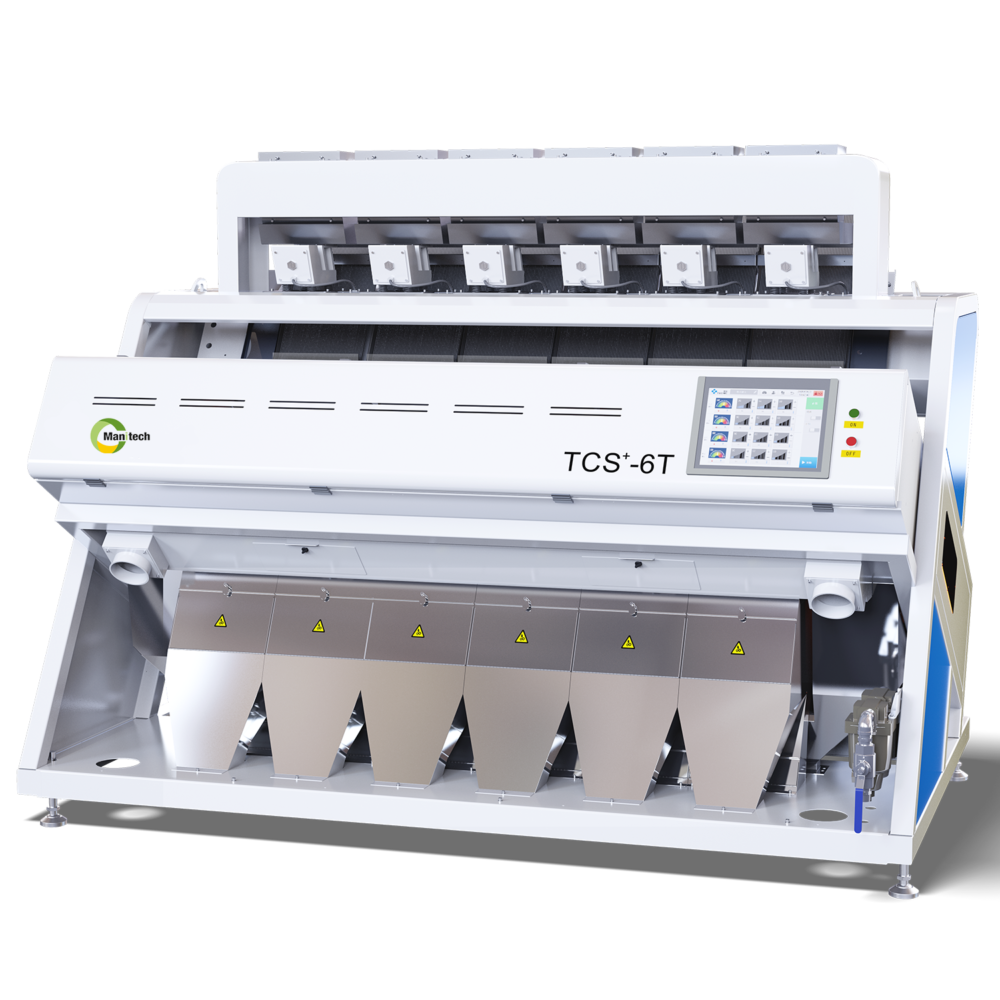

Model | TCS 6T |
Main Power (kW) | 7.5 |
Air Consumption (m /min) | 3.2 |
Capacity (t/h) | 4-9 |
Net Weight (kg) | 1450 |
Dimension (LxWxH) (mm) | 2670 x 1660 x 2185 |

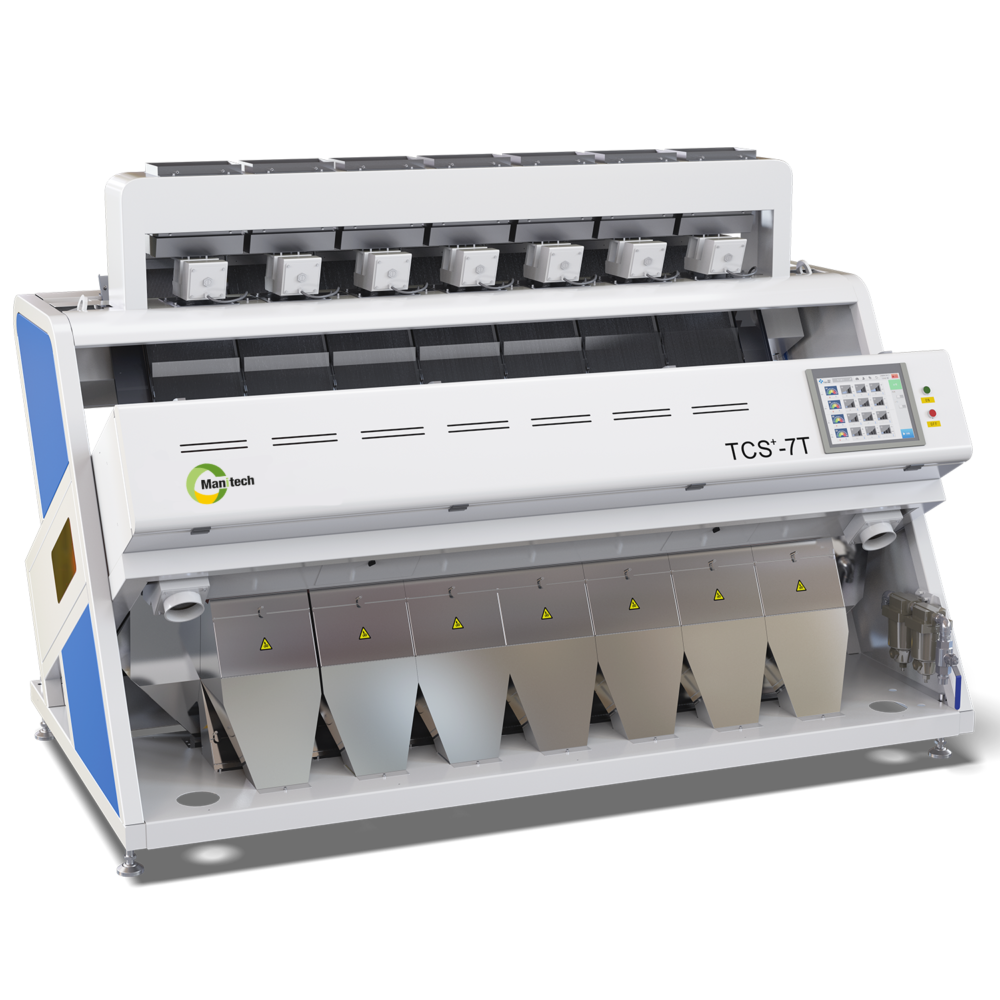

Model | TCS 7T |
Main Power (kW) | 7.5 |
Air Consumption (m /min) | 3.5 |
Capacity (t/h) | 5-10 |
Net Weight (kg) | 1650 |
Dimension (LxWxH) (mm) | 2985 x 1660 x 2185 |

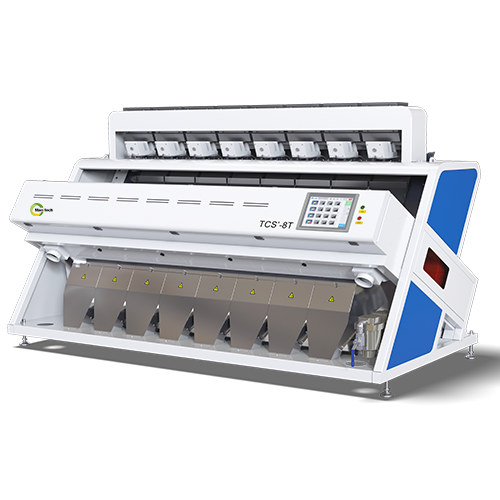

Model | TCS 8T |
Main Power (kW) | 10 |
Air Consumption (m /min) | 4 |
Capacity (t/h) | 6-11 |
Net Weight (kg) | 1850 |
Dimension (LxWxH) (mm) | 3300 x 1660 x 2185 |

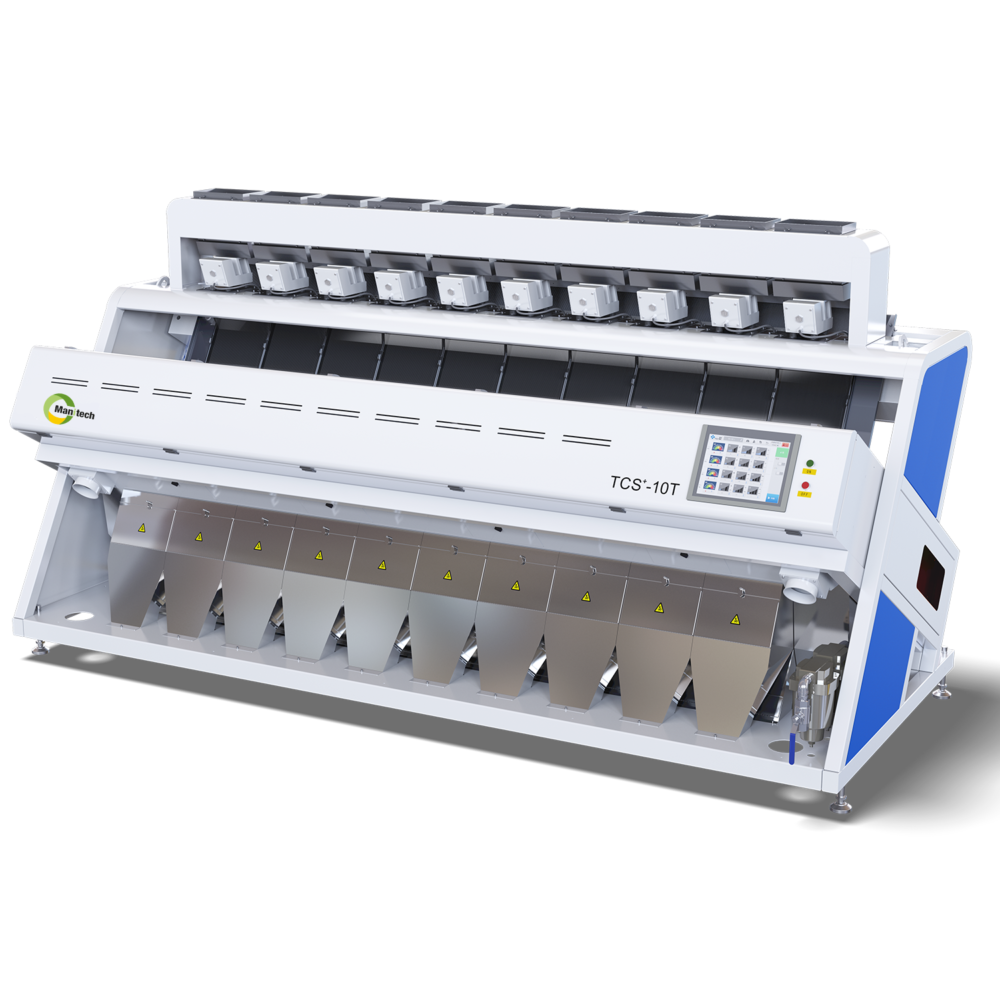

Model | TCS 10T |
Main Power (kW) | 10 |
Air Consumption (m /min) | 4.8 |
Capacity (t/h) | 8-14 |
Net Weight (kg) | 2200 |
Dimension (LxWxH) (mm) | 4100 x 1660 x 2185 |
Model | DCS-1T64 |
Ejector | 64 |
Capacity | 0.9-1.5 |
Optimized
Carryover | 100:1 |
Voltage (V) | AC220V / 50Hz |
Power | 1.5 |
Weight (Kg) | 350(+5%) |
Dimension
(LxWxH mm) | 955x1630x1550 |
Model | DCS-1T80 |
Ejector | 80 |
Capacity | 1.0-2.0 |
Optimized
Carryover | 100:1 |
Voltage (V) | AC220V / 50Hz |
Power | 1.8 |
Weight (Kg) | 400(+5%) |
Dimension
(LxWxH mm) | 1045x1630x1550 |
Model | DCS-1T96 |
Ejector | 96 |
Capacity | 1.1 – 2.2 |
Optimized
Carryover | 100:1 |
Voltage (V) | AC220V / 50Hz |
Power | 2.0 |
Weight (Kg) | 420(+5%) |
Dimension
(LxWxH mm) | 1045x1630x1550 |
Model | DCS-2T160 |
Ejector | 160 |
Capacity | 1.5~3.2 |
Optimized Carryover | >100:1 |
Voltage (V) | AC220V / 50Hz |
Power | <2.5 |
Weight (Kg) | 570(+5%) |
Dimension (LxWxH mm) | 1330x1630x1550 |
Model | DCS-6T |
Ejector | 384 |
Capacity | 5.0~8.0 |
Optimized Carryover | >100:1 |
Voltage (V) | AC220V / 50Hz |
Power | <5.2 |
Weight (Kg) | 1246(+5%) |
Dimension (LxWxH mm) | 2656x1619x2042 |
Model | DCS-10T |
Ejector | 640 |
Capacity | 8.0-15.0 |
Optimized
Carryover | 100:1 |
Voltage (V) | AC220V / 50Hz |
Power | 8.0 |
Weight (Kg) | 2335(+5%) |
Dimension
(LxWxH mm) | 4128x1618x2032 |
Model | DCS-300S |
Ejector | 64 |
Capacity | / |
Optimized
Carryover | / |
Voltage (V) | AC220V / 50Hz |
Power | 3.0 |
Weight (Kg) | 500(+10%) |
Dimension
(LxWxH mm) | 3098x820x1660 |
Model | DCS-600S |
Ejector | 128 |
Capacity | / |
Optimized
Carryover | / |
Voltage (V) | AC220V / 50Hz |
Power | 3.5 |
Weight (Kg) | 650(+10%) |
Dimension
(LxWxH mm) | 3098x1130x1660 |
Model | DCS-1200S-M |
Ejector | 120 |
Capacity | / |
Optimized Carryover | / |
Voltage (V) | AC380V / 50Hz |
Power | <5.5 |
Weight (Kg) | 1800(+10%) |
Dimension (LxWxH mm) | 4392x1928x2501 |
Model | DCS-1200D |
Ejector | 240 |
Capacity | / |
Optimized
Carryover | / |
Voltage (V) | AC380V / 50Hz |
Power | 9.5 |
Weight (Kg) | 3000(+10%) |
Dimension
(LxWxH mm) | 5215x1928x3093 |
